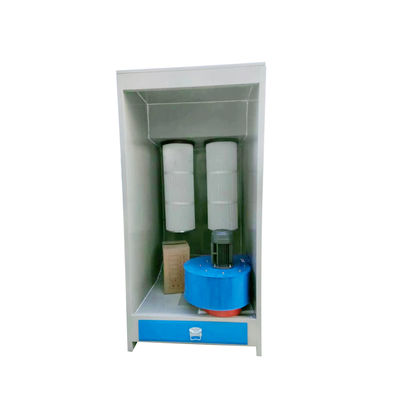

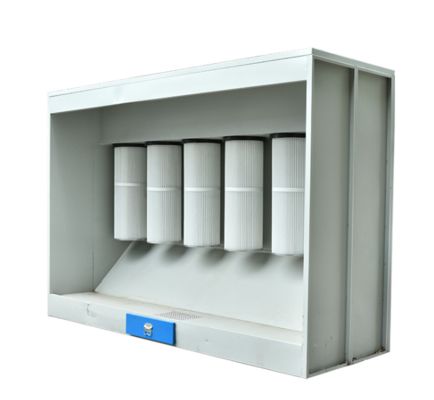

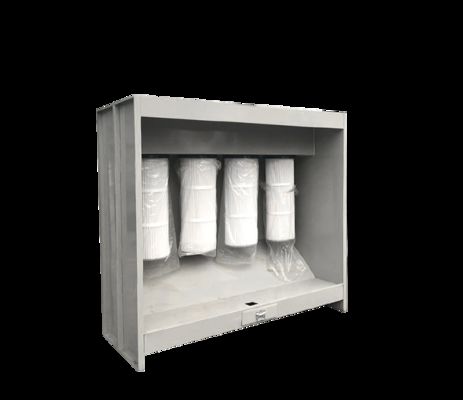

High Capacity Powder Coating Booth with Non Woven Fabric Filters to Enhance Powder Reuse and Reduce Material Consumption

Powder Coating Booth System

Recycling Powder Spray Booth for Coating Shops

Boost powder utilization, keep your workshop clean, and lower operating cost with a high-efficiency powder recovery booth designed for professional coating shops.

Key Highlights

• Over 95% powder recovery – minimize powder waste and maximize ROI

• Lower coating material cost – reclaim overspray powder for reuse

• Stable 1900 m³/h airflow – consistent suction for a cleaner spraying zone

• High-precision filtration – better dust control, cleaner environment

• Energy-efficient operation – optimized airflow + filtration for reduced power consumption

Quick Details

• Powder Recovery Rate: ≥95%

• Airflow Capacity: 1900 m³/h

• Filtration Precision: High filtration efficiency (fine powder capture)

• Application: Powder coating shops, metal furniture, auto parts, hardware, frames, wheels, cabinets, etc.

• Operation: Energy-saving, easy maintenance

Product Overview

This Powder Coating Booth System is a recycling powder spray booth engineered to capture and recover overspray powder efficiently. By maintaining a stable airflow and using high-precision filtration, the booth helps improve coating quality while keeping the work area cleaner and safer.

Whether you run a small coating workshop or a production line with regular powder spraying, this system can significantly reduce powder consumption and improve daily productivity.

How It Works

1. Overspray powder is captured by controlled airflow during spraying

2. Filtration & separation remove fine particles and keep air clean

3. Recovered powder is collected and can be reused (depending on powder type and process requirements)

4. Clean air exhaust improves workshop environment and compliance potential

Benefits for Your Coating Shop

1) Save Powder, Save Money

Recovering 95%+ of overspray means you spend less on powder while keeping output stable—especially valuable for high-volume jobs.

2) Cleaner Workshop & Better Operator Experience

High filtration helps reduce airborne powder dust, improving cleanliness and making housekeeping easier.

3) Stable Suction for Better Coating Consistency

The 1900 m³/h airflow supports a balanced working zone, helping reduce powder floating and uneven deposition.

4) Low Energy Consumption

The system is designed for energy-efficient operation, supporting strong performance without unnecessary power waste.

Ideal Applications

• Powder coating shops (manual spray operations)

• Metal fabrication & hardware factories

• Auto parts, rims, frames, brackets

• Cabinets, shelves, furniture, profiles

• Small-to-medium powder coating lines

What’s Included (Typical Supply)

• Powder coating booth body

• Powder recovery unit / filtration module

• Powder collection container

• Control system (basic operation panel)

• Standard accessories for installation & maintenance

If you share your booth size, product type, and daily output, we can recommend the right configuration.

Optional Upgrades

• Automatic filter cleaning (pulse-jet)

• Cyclone + cartridge filter combo recovery

• Customized booth dimensions

• Stainless/galvanized options

• Additional lighting or anti-static features

• Multi-station design for higher throughput

Buyers’ Checklist (Help Us Quote Fast)

To recommend the best model, please send:

• Workpiece max size (L×W×H)

• Powder type and daily consumption

• Required booth internal size / available workshop space

• Manual or semi-auto operation

• Local voltage / phase (e.g., 380V 50Hz 3-phase)

FAQ

Q1: Can recovered powder be reused directly?
A: In most cases, yes—especially for single-color, clean spraying environments. For high-finish requirements, many customers mix recovered powder with new powder at a certain ratio.

Q2: What maintenance is required?
A: Regular dust container cleaning and periodic filter inspection/replacement. If equipped with pulse-jet cleaning, daily maintenance is reduced.

Q3: Is 1900 m³/h enough for my application?
A: It depends on booth size and spray intensity. Send your booth dimensions and workpiece size—we’ll confirm airflow requirements and recommend the right unit.

Q4: Can you customize booth size?
A: Yes. We can customize booth dimensions and recovery configuration based on your workshop layout and production needs.

Call to Action

Want a fast quote and layout suggestion?
Send us your workpiece size + booth size + voltage + destination port, and we’ll propose the best powder recovery booth solution.
